Acoustic Panels Up to 33 Feet Tall with STC Ratings to 55
The Signature 800 is available in three configurations: Model 841 for individual remote or side-stacking panels, Model 842 for paired center-stacking panels, and Model 843-E for electrically operated continuously hinged panels. Individual panels range from 24 to 48.5 inches wide and reach heights up to 33’3″ for the 841 and 842 models. Panel weight ranges from 6 to 9.5 lbs per square foot depending on the acoustic configuration.
STC ratings span from 43 to 55, covering standard conference rooms through high-demand environments like hotel ballrooms and performing arts venues. Seal systems include the FA, FM, MM, and AA series with floor clearances from 1 to 4 inches. Five aluminum track profiles are available (#23-T, #33-T, #45-T, #55-T, #72) to accommodate different load and configuration requirements.
Finish options include vinyl, fabric, carpet, plastic laminate, wood veneer, full-height marker board, tack board, painted steel, and customer-owned material.
Moderco Operable Walls for NYC Commercial and Institutional Projects
Moderco NYC is the authorized Moderco distributor for the New York City metro area. Four product lines, STC ratings from 43 to 55, and panel heights up to 33 feet, backed by local installation and service.
The Second-Largest Operable Partition Manufacturer in North America
Moderco Inc. has manufactured operable partition systems from its Montreal-region facility since 1984. Family-owned across two generations, Moderco employs over 200 people and distributes through 104 partners in more than 20 countries. Their flagship Signature 800 series is described as the most manufactured and continuously in-use operable partition system design in the world.
Now Available Through a Dedicated NYC Distributor
Until Moderco NYC, no dedicated distributor represented Moderco in the New York City market. Architects and contractors in the five boroughs can now specify, source, and install Moderco systems through a single local partner with product training direct from the manufacturer. Moderco NYC carries the full Moderco product line: Signature 800, Excel 700, Crystal 200, and Vision 100.
Four Product Lines for Every Acoustic and Spatial Requirement
Moderco manufactures operable partition systems and movable glass walls across four distinct product lines. Each line addresses a specific combination of acoustic performance, visual transparency, and operational requirements.
Flagship 4-inch acoustic operable partition. STC 43 to 55. Panel heights up to 33’3″. Models for individual, paired, and electrically operated configurations. The most manufactured operable partition system design in the world.
Value-engineered 3-inch operable partition with fully welded steel frame construction. STC 43 to 52. Panel heights up to 30’3″. Includes a gymnasium divider variant (Model 733-EG) for education and recreation facilities.
Double-glazed acoustically rated movable glass wall. STC 44. Compatible with Signature 800 solid panels for mixed configurations. Accessories include electrically tilting blinds, ADA pass-through doors, and dry-erase insets.
Non-acoustical single-panel glass partition for visual separation with maintained natural light. Panel heights up to 12’6″. Tempered glass with polished vertical edges. Available in clear, tinted, colored, etched, and sand-blasted finishes.

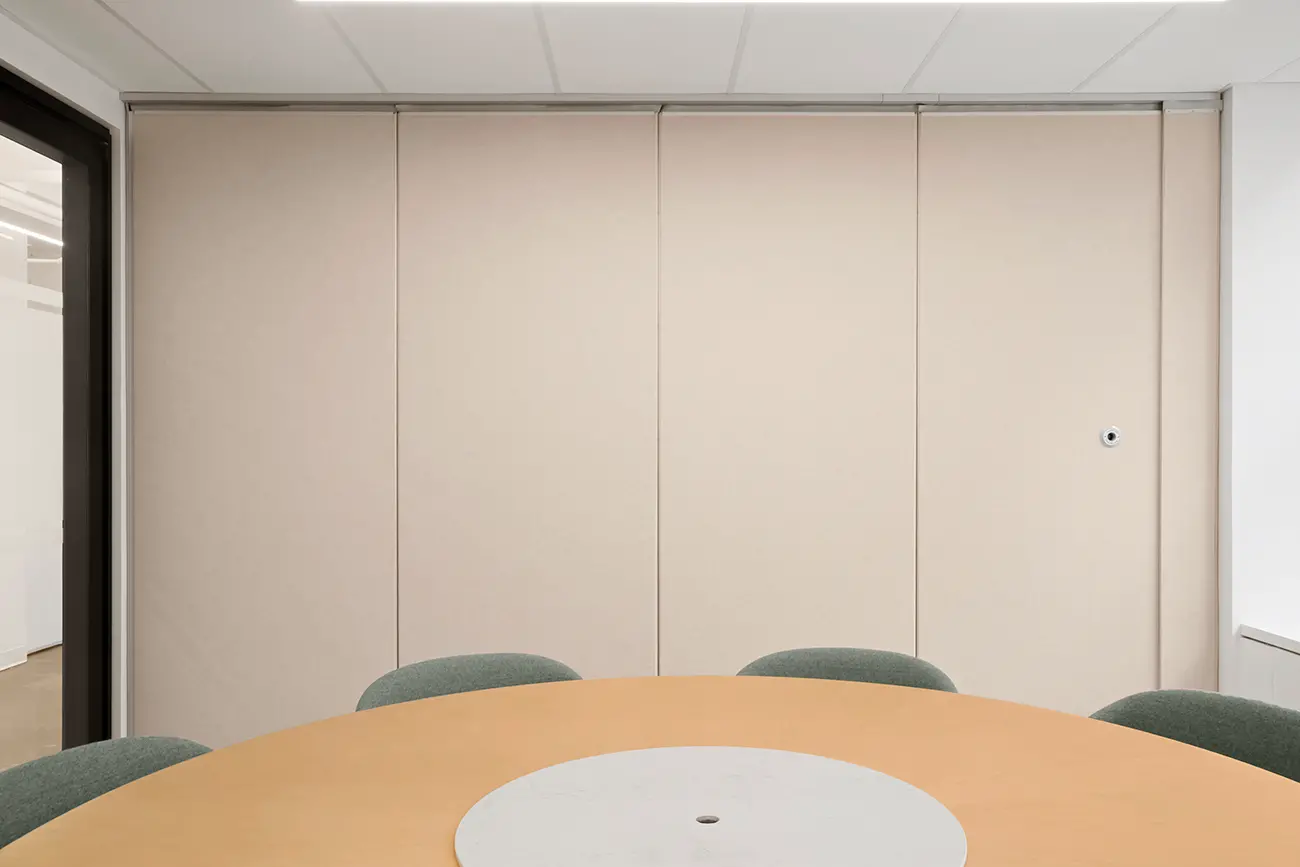

Signature 800 Series. Moderco's Highest-Performance Operable Partition
The Signature 800 is a 4-inch top-hung operable partition system built on a steel-reinforced aluminum frame. It has been in continuous production for over 40 years and is installed in commercial, institutional, and hospitality environments across 20 countries.
Excel 700 Series. Welded Steel Construction at a Competitive Price Point
The Excel 700 (transitioning to the new 730 Series with 3-inch panel thickness) is Moderco’s value-positioned operable partition line. It uses a unique fully welded steel frame construction rather than assembled components.
-
Welded Steel Frames and Deep Interlocking Astragals
The Excel 700 is available in three configurations: Model 731 for individual panels, Model 732 for paired center-stacking, and Model 733-EG for electrically operated gymnasium dividers. Panels range from 24 to 49.25 inches wide with heights up to 30’3″. Panel weight spans 4.1 to 10.9 lbs per square foot.
STC ratings of 43, 48, 49, and 52 have been independently tested. The welded steel frame provides structural rigidity that resists deflection over time, and the deep interlocking vertical astragals create a tight seal between adjacent panels. The trimless, monolithic appearance option eliminates visible edge framing for a clean aesthetic.
Finish options include vinyl, fabric, customer-specified materials, marker board, and uncovered steel. Closure options include telescopic or hinged panels with wall jamb or pocket door configurations.

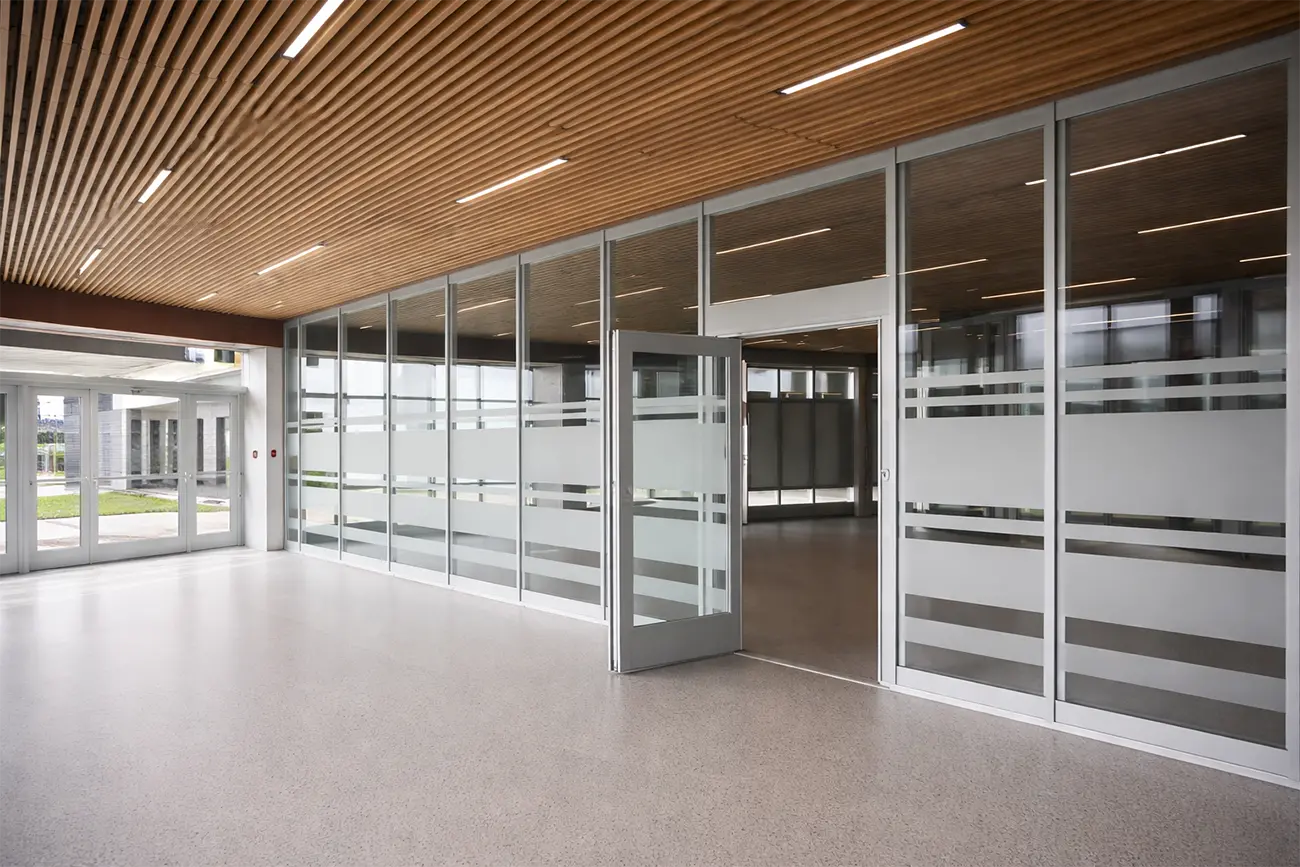

Crystal 200. Double-Glazed Acoustic Glass Wall with STC 44
The Crystal 200 is Moderco’s acoustically rated movable glass wall system. It uses double glazing with a 3-inch air space to achieve an STC 44 rating while maintaining full visual transparency between divided spaces.
-
Acoustic Transparency with Signature 800 Compatibility
The Crystal 200 is available in three configurations: Model 240 for single point center stacking, Model 241 for individual remote or side stacking, and Model 242 for paired center stacking. Panels range from 12 to 48.5 inches wide with heights up to 12’3″ (higher on request). Each panel uses two layers of 1/4-inch tempered glass (ASTM C1048) with a 3-inch air space.
The Crystal 200 is built on the same steel-reinforced structural frame as the Signature 800, which means solid and glass panels can be combined in a single track run. This allows architects to design mixed configurations where some sections of a partition are opaque and acoustically rated while others are transparent.
Accessories include remote-controlled electrically tilting horizontal blinds, ADA-compliant pass-through doors, ADA pivot closure panels, and inset dry-erase, chalk, or cork boards. Frame finishes are available in multiple anodized and powder-coated options. Glass finishes include clear, acid-etched, sand-blasted, frosted, painted, and custom etched designs.

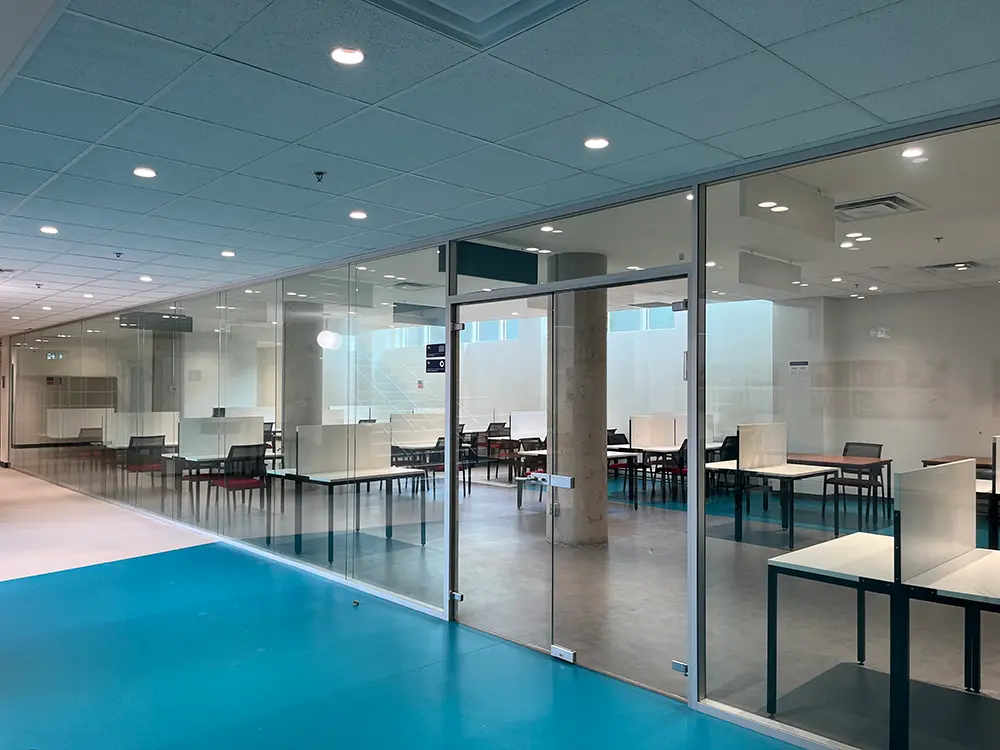

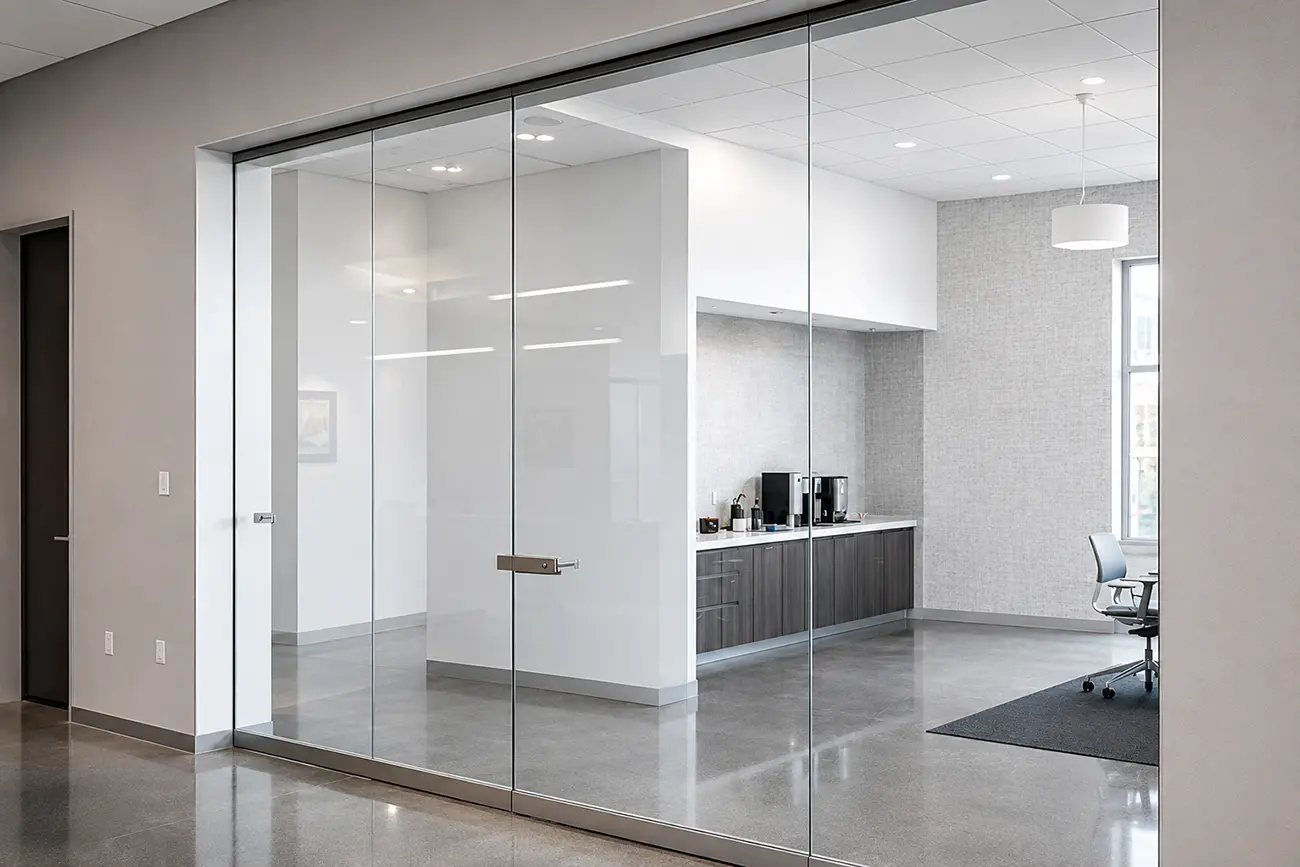

Vision 100. Single-Panel Glass Partition for Visual Separation
The Vision 100 is Moderco’s non-acoustical glass partition system. It provides physical separation and maintained natural light without an acoustic rating, making it suitable for spaces where visual openness is the priority.
-
Lightweight Glass Panels with Polished Vertical Edges
The Vision 100 is available in two configurations: Model 121 for individual remote or side stacking, and Model 122 for paired center stacking. Each panel uses 1/2-inch tempered glass with polished vertical edges. Panels range from 12 to 48.5 inches wide with heights from 4 feet to 12’6″. Panel weight is 6.4 lbs per square foot.
The system runs on a clear anodized 6063-T6 aluminum track (#23-T) and uses a foot bolt per panel for stabilization. Glass finish options include clear, tinted, colored, etched, sand-blasted, acrylic, and custom designs.
The Vision 100 is specified for lobbies, reception areas, co-working spaces, and any environment where flexible room division is needed without acoustic separation requirements.
Moderco Product Specifications at a Glance
This summary table compares the four Moderco product lines available through Moderco NYC in the NYC metro area. For full technical specifications, brochures, and CAD files, visit our resources library.
| Specification | Signature 800 | Excel 700 | |
|---|---|---|---|
|
Type |
Operable partition |
Operable partition |
|
|
Panel Thickness |
4" (102mm) |
3" (77mm) |
|
|
STC Range |
43 to 55 |
43 to 52 |
|
|
Max Panel Height |
33'3" (10,130mm) |
30'3" (9,220mm) |
|
|
Panel Width Range |
24" to 48.5" |
24" to 49.25" |
|
|
Panel Weight |
6 to 9.5 lbs/sq ft |
4.1 to 10.9 lbs/sq ft |
|
|
Frame |
Steel-reinforced aluminum |
Welded steel |
|
|
Electric Option |
Yes (843-E) |
Yes (733-EG) |
|
|
Models |
841, 842, 843-E |
731, 732, 733-EG |
| Specification | Crystal 200 | Vision 100 | |
|---|---|---|---|
|
Type |
Acoustic glass wall |
Non-acoustic glass |
|
|
Panel Thickness |
4" (102mm) |
1-3/8" (35mm) |
|
|
STC Range |
44 |
N/A |
|
|
Max Panel Height |
12'3" (3,734mm) |
12'6" (3,814mm) |
|
|
Panel Width Range |
12" to 48.5" |
12" to 48.5" |
|
|
Panel Weight |
9.5 lbs/sq ft |
6.4 lbs/sq ft |
|
|
Frame |
Steel-reinforced |
Aluminum |
|
|
Electric Option |
No |
No |
|
|
Models |
240, 241, 242 |
121, 122 |
Surface Finishes Across the Moderco Product Range
Every Moderco operable partition and glass wall system accepts a range of surface finishes to coordinate with the interior design of the surrounding space. Finish selection depends on the product line, acoustic requirements, and the project’s design intent.
From Carpet and Fabric to Wood Veneer and Custom Materials
The Signature 800 offers the widest finish selection in the Moderco range: vinyl, fabric, carpet, plastic laminate, wood veneer, full-height marker board, tack board, painted steel, and customer-owned material. The Excel 700 accepts vinyl, fabric, customer-specified materials, marker board, and uncovered steel. For glass systems, the Crystal 200 and Vision 100 offer clear, acid-etched, sand-blasted, frosted, painted, and custom etched glass finishes, with frame options in anodized and powder-coated aluminum. Moderco also produces a HytexRib carpet line with 12 standard colorways for operable partition surfaces.
Proven in NYC's Most Demanding Commercial Environments
Moderco operable wall systems are installed in hotels, convention centers, corporate headquarters, and educational institutions across the New York City metro area. Moderco NYC brings these systems to your project with local specification support and installation.
-
From Hotel Ballrooms to University Lecture Halls

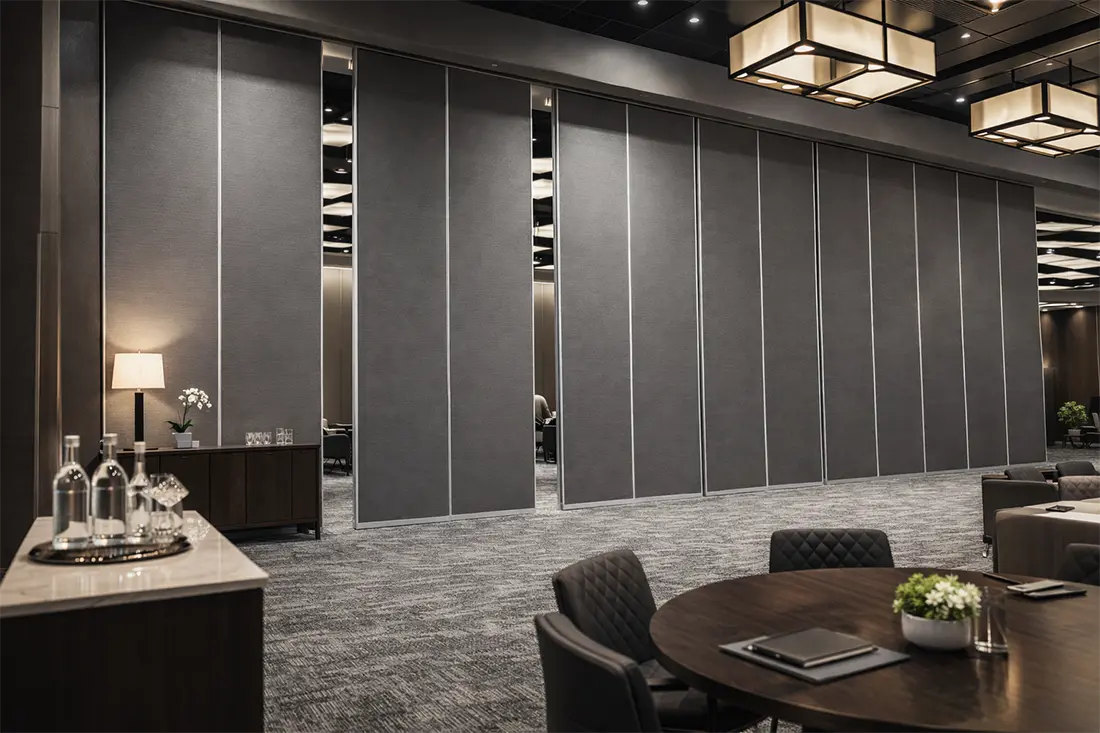

Moderco’s Signature 800 and Crystal 200 systems handle the acoustic and spatial demands of New York City’s commercial construction market. Hotel ballrooms require operable walls that span wide openings at STC 55. Corporate conference centers need flexible room division that reconfigures daily. University facilities demand durable systems that withstand high-frequency operation across decades of use. Moderco’s product range covers all of these applications through a single manufacturer.
Moderco Installation and Maintenance by a New York City Team
Moderco NYC provides full-service installation and ongoing maintenance for every Moderco system sold in the NYC metro area. Our crew is trained directly by Moderco and carries parts inventory locally.
-
From Site Survey to Seal Calibration, Handled Locally
Common Questions About Moderco Operable Walls
Answers to the questions architects and contractors ask most when evaluating Moderco systems for NYC projects.
Moderco’s operable partition lines cover STC 43 to 55. The Signature 800 series tops out at STC 55, suitable for hotel ballrooms and performing arts venues. The Excel 700 series reaches STC 52. The Crystal 200 acoustic glass wall is rated STC 44. The Vision 100 is a non-acoustic glass partition with no STC rating. Standard conference rooms typically require STC 48 to 52, while high-demand environments need STC 55 or higher.
The Signature 800 uses a steel-reinforced aluminum frame with 4-inch panel thickness and reaches heights up to 33’3″ with STC ratings to 55. The Excel 700 uses a fully welded steel frame with 3-inch panel thickness, reaching 30’3″ with STC ratings to 52. The Signature 800 is the premium line for maximum acoustic performance and height. The Excel 700 is the value alternative with comparable durability at a lower price point and includes a gymnasium divider variant (Model 733-EG).
Yes. The Crystal 200 acoustic glass wall is built on the same steel-reinforced structural frame as the Signature 800. This means solid and glass panels can be combined in a single track run, allowing architects to design mixed configurations where some sections are opaque and acoustically rated while others are fully transparent.
The Signature 800 accepts vinyl, fabric, carpet, plastic laminate, wood veneer, full-height marker board, tack board, painted steel, and customer-owned material. The Excel 700 accepts vinyl, fabric, customer-specified materials, and marker board. The Crystal 200 offers multiple anodized and powder-coated frame finishes with glass options including clear, acid-etched, sand-blasted, frosted, painted, and custom etched designs.
